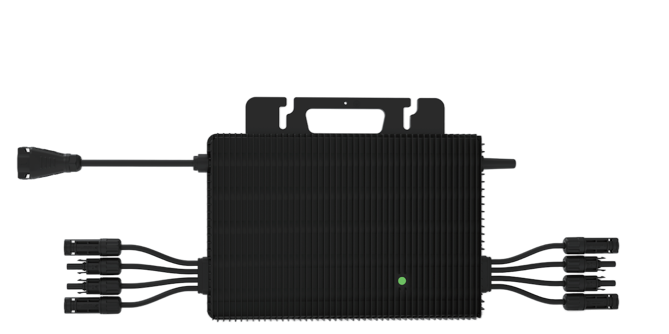

Micro Inverter
Ambient temperature range (°C)
-40 to +65 (derating of over 50°C Ambient Temperature)
Dimensions (Wx H x D [mm])
263x227x37
Weight (kg)
3.15
Enclosure rating
Outdoor-IP67(NEMA 6)
Max. operating altitude without derating [m]
<2000
Cooling
Natural convection-No fans
Communication
Built-in WiFi module
Type of isolation
Galvanically Isolated HF Transformer
Monitoring
Cloud
Commonly used module power (W)
320 to 720+
MPPT voltage range (V)
38~60
Rated output power (VA)
1200
Rated output current (A)
5.21
Max output current (A)
5.45
Nominal output voltage (V)
220/230/240 L/N/PE
Nominal frequency (Hz)
50/60
Power factor (adjustable)
>0.99 default 0.9 leading ... 0.9 lagging
Total harmonic distortion
<3%
Maximum units per 2.5 mm² branch
4
Maximum units per 4 mm² branch
5
Maximum units per 6 mm² branch
7
CEC peak efficiency
96.40%
Nominal MPPT eficiency
99.80%
Night power consumption(mw)
<50
Micro Inverter
Ambient temperature range (°C)
-40 to +65 (derating of over 50°C Ambient Temperature)
Dimensions (Wx H x D [mm])
332.5x267x42.5
Weight (kg)
5.7
Enclosure rating
Outdoor-IP67(NEMA 6)
Max. operating altitude without derating [m]
<2000
Cooling
Natural convection-No fans
Communication
Built-in WiFi module
Type of isolation
Galvanically Isolated HF Transformer
Monitoring
Cloud
Commonly used module power (W)
320 to 720+
MPPT voltage range (V)
40~60
Rated output power (VA)
2500
Rated output current (A)
10.86
Max output current (A)
11.36
Nominal output voltage (V)
220/230/240 L/N/PE
Nominal frequency (Hz)
50/60
Power factor (adjustable)
>0.99 default 0.9 leading ... 0.9 lagging
Total harmonic distortion
<3%
Maximum units per 2.5 mm² branch
2
Maximum units per 4 mm² branch
2
Maximum units per 6 mm² branch
3
CEC peak efficiency
96.40%
Nominal MPPT eficiency
99.80%
Night power consumption(mw)
<50
