Storage Battery
Number of allowed parallel machines
NO/1~6
Rated input voltage
220/230Vac
Frequency
50Hz/60Hz(Automatic detection)
Maximum charging efficiency
>93%
Conversion time (bypass and inverter)
10ms (Typical value)
Maximum bypass overload current
40A
Output voltage waveform
Pure sine wave
Rated output ower (VA)
6200
Rated output power (W)
6200
Rated output Voltage (Vac)
230Vac±5%
Maximum output efficiency
>94%
Peak power
12000VA
Load capacity of the motor
4HP
Output short circuit protection
200ms protection
Power saving mode
Load ≤ 25W enters power-saving mode
Maximum PV open circuit voltage
500Vdc
PV working voltage range
120-500Vdc
Maximum PV input power
6500W
Maximum PV input current
27A
Maximum mixed charging current (configurable)
0-100A
Specification certification
CE(IEC62109-1,2)
EMC certification level
EN61000, C2
Storage temperature range
-25°C ~ 60°C
Humidity range
5% to 95% (three-proof paint protection)
Noise
≤60dB
Heat dissipation
Forced air cooling, adjustable wind speed
Communication interface
USB / RS485(/WiFi/GPRS) / Node control
Size（L*W*D）
428mm*280mm*110mm
Weight（kg）
8.2
The maximum charging current for grid charging (can be set)
80A
Working temperature range
-10°C to 55°C，＞45℃ Reduced capacity operation
Overload protection
(102% < load < 125%) ±10%: report error and shut down output after 5 minutes; (125% < load < 150%) ±10%: report error and shut down output after 10 seconds; load > 150% ±10%: report error and shut down output after 5 seconds.
Storage Battery
Number of allowed parallel machines
NO/1~6
Rated input voltage
230Vac±5%
Frequency
50Hz/60Hz(Automatic detection)
Maximum charging efficiency
>93%
Conversion time (bypass and inverter)
10ms (Typical value)
Maximum bypass overload current
60A
Output voltage waveform
Pure sine wave
Rated output ower (VA)
12000
Rated output power (W)
12000
Rated output voltage (Vac)
230Vac±5%
Maximum output efficiency
>94%
Peak power
24000VA
Load capacity of the motor
8HP
Output short circuit protection
200ms protection
Power saving mode
Load ≤ 50W enters power-saving mode
Maximum PV open circuit voltage
500Vdc
PV working voltage range
120-500Vdc
Maximum PV input power
9000W+9000W
Maximum PV input current
27A+27A
Maximum mixed charging current (configurable)
0-150A
Specification certification
CE(IEC62109-1,2)
EMC certification level
EN61000, C2
Storage temperature range
-25°C ~ 60°C
Humidity range
5% to 95% (three-proof paint protection)
Noise
≤60dB
Heat dissipation
Forced air cooling, adjustable wind speed
Communication interface
USB / RS485(/WiFi/GPRS) / Node control
size（L*W*D）
540x350x120mm
Weight（kg）
19.5
The maximum charging current for grid charging (can be set)
150A
Working temperature range
-10°C to 55°C，＞45℃ Reduced capacity operation
Overload protection
(102% < load < 125%) ±10%: report error and shut down output after 5 minutes; (125% < load < 150%) ±10%: report error and shut down output after 10 seconds; load > 150% ±10%: report error and shut down output after 5 seconds

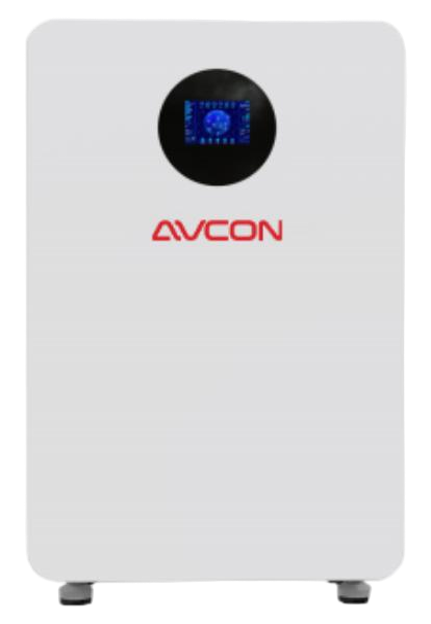

Storage Battery
Battey type
LiFePO4
Module voltage/vapacity
51.2V/100Ah
System modules serial number
/
System energy range
5.12kWh
Operating voltage
40-58.4V
Recommended charge/discharge current
50A (0.5C)
Max. charge/discharge current
10A
Peak discharge current
120A
Depth of discharge
95%
Communication
CAN/RS485
Cycle life
Unlimited cycles / 10 Years
Signal module weight
53±3Kg
Max. single cluster dimension[W*D*H]
404*184*680） ± 2mm
Charging temp. range
0～ 55℃
Discharging temp. range
-20～ 55℃
Protection level
IP30
Fire protection system
/
Installation method
/
Cooling method
Spontaneous combustion air cooling
WIFl module
Bluetooth WIFI
Cetiication & Safety standard
CE-EMC / CE-RED / 62619 / 63056 / 62477 / 62040 / UN38.3
Storage Battery
Battey type
LiFePO4
Module voltage/capacity
51.2V/314Ah
System modules serial number
/
System energy range
16.08kWh
Operating voltage
43.2-58.4V
Recommended charge/discharge current
152.5A (0.5C)
Max. charge/discharge current
200A
Peak discharge current
300A
Depth of discharge
95%
Communication
CAN/RS485
Cycle Life
Unlimited cycles / 10 Years
Signal module weight
136.753±3Kg
Max. single cluster dimension[W*D*H]
450 * 261 * 870mm
Charging temp. range
0～ 55℃
Discharging temp. range
-20～ 55℃
Protection level
IP30
Fire protection system
/
Installation method
/
Cooling method
Spontaneous combustion air cooling
WIFl module
Bluetooth WIFI
Cetiication & Safety standard
CE-EMC / CE-RED/62619 / 63056 / 62477 / 62040 / UN38.3
